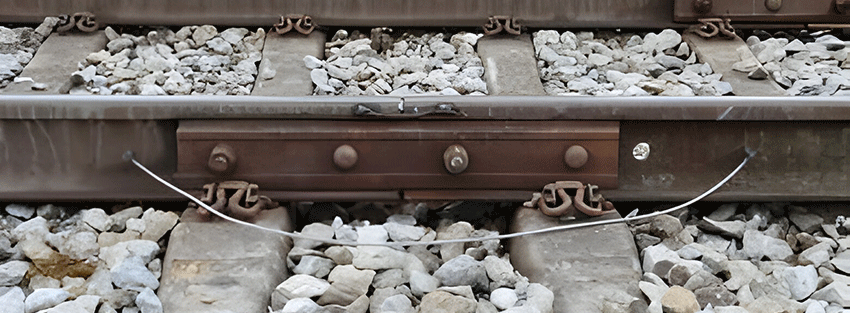

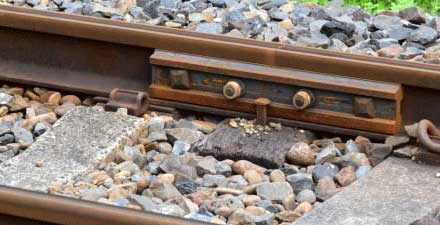

Railway Fish Plates play a vital role in joining rail tracks, ensuring stability, safety, and smooth operation. Let’s delve into the types and features of railway fish plates, with a spotlight on Veera Technotrec, a leading railway fish plates manufacturer in India with over two decades of experience in producing high-quality track fittings.
Types of Railway Fish Plates
Common Standard Fish Plate: This type of fish plate is widely used and adheres to standard specifications set by railway authorities. It features symmetrical designs with bolt holes on either side for secure attachment to rail tracks. Common standard fish plates are versatile and compatible with various rail profiles, making them suitable for a range of railway applications.
Compromise Joint Fish Plate: Compromise joint fish plates are specifically designed to join rails of different sizes or profiles. They feature an offset design with one side having a raised section to compensate for the height difference between the rails. These fish plates ensure a smooth transition between rail sections, maintaining track alignment and reducing wear and tear on rolling stock.
Insulated Fish Plate: In electrified railway systems, insulated fish plates are essential for maintaining electrical isolation between rail sections. These fish plates feature insulating materials such as fiberglass or composite materials between the rail and the fish plate itself. Insulated fish plates prevent the flow of electrical current between adjoining rail segments, ensuring safety and preventing electrical interference.
Compromise Insulated Fish Plate: Similar to compromise joint fish plates, compromise insulated fish plates serve the purpose of joining rails of different sizes or profiles while also providing electrical isolation. They combine the features of both compromise joints and insulated fish plates, making them indispensable in electrified railway networks with varying rail configurations.
Joggled Fish Plate: Joggled fish plates are designed to accommodate minor misalignments or irregularities in rail tracks. They feature a contoured or curved profile, allowing for slight adjustments in track alignment without compromising structural integrity. Joggled fish plates help maintain smooth and stable track operations by mitigating the effects of track imperfections and settlement over time.
Features of Railway Fish Plates
Material Quality: Railway fish plates are typically constructed from high-strength steel or ductile iron to withstand the immense forces and stresses experienced in railway operations. Quality materials ensure durability, resistance to corrosion, and longevity, contributing to the overall reliability of the railway infrastructure.
Precision Engineering: Precision machining and manufacturing processes are employed to fabricate railway fish plates with accurate dimensions and tight tolerances. This precision ensures proper alignment and secure attachment of rail tracks, minimizing the risk of derailments and track defects.
Bolt Holes Configuration: The arrangement of bolt holes on railway fish plates is standardized to facilitate easy installation and maintenance. Properly positioned bolt holes enable quick and secure fastening of fish plates to rail tracks, allowing for efficient track repairs and replacements when necessary.
Surface Finish: Railway fish plates undergo surface treatments such as hot-dip galvanizing or corrosion-resistant coatings to enhance their resistance to environmental factors such as moisture, rust, and abrasion. A smooth and durable surface finish prolongs the service life of fish plates and reduces maintenance requirements.
Compatibility: Railway fish plates are designed to be compatible with specific rail profiles and sizes, ensuring proper fitment and functionality. Compatibility is crucial for seamless integration into existing rail networks and interchangeability during track maintenance and upgrades.
Veera Technotrec: Leading Railway Fish Plate Manufacturer
Veera Technotrec stands out as a premier manufacturer of railway fish plates in India, boasting over two decades of experience in the industry. The company has earned a stellar reputation for its commitment to excellence, innovation, and customer satisfaction. Veera Technotrec specializes in the design, manufacturing, and supply of high-quality track fittings, including railway fish plates, across India and overseas markets.
With state-of-the-art manufacturing facilities and a team of skilled engineers and technicians, Veera Technotrec ensures the highest standards of product quality and reliability. The company adheres to stringent quality control measures at every stage of the manufacturing process, from material selection to final inspection, to deliver fish plates that meet or exceed industry standards and customer expectations.
Veera Technotrec’s comprehensive product range includes a variety of railway fish plates tailored to meet the diverse needs of railway networks worldwide. Whether it’s common standard fish plates, compromise joints, insulated fish plates, or specialized configurations, Veera Technotrec offers solutions that prioritize safety, performance, and durability.
In addition to its manufacturing prowess, Veera Technotrec distinguishes itself through its commitment to customer service and support. The company works closely with clients to understand their specific requirements and provides customized solutions to address unique challenges. With a strong focus on reliability, efficiency, and innovation, Veera Technotrec continues to be a trusted partner for railway infrastructure projects of any scale or complexity.
